AAA Configuration



Download link for Practical of AAA:)

https://mega.nz/file/9bwByCCD#yHxcEkBprk_Gksa8YI783ehcoUp6_pMch8OlV6QlFW0

Assign the IP Address on Router 2811:

-------------------------------------

Router>enable

Router#configure terminal

Router(config)#hostname R-1

R-1(config)#int FastEthernet 0/0

R-1(config-if)#ip address 192.168.10.1 255.255.255.0

R-1(config-if)#no shutdown

R-1(config-if)#exit

R-1(config)#

Assign the IP Address on Server:

--------------------------------

Assign the IP Address on Client:

--------------------------------

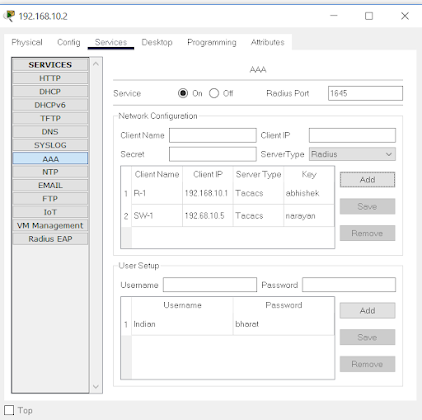

Network Configuration & User Setup on Server:

---------------------------------------------

Client Name = R-1

Client IP = 192.168.10.1

Server Type = Tacacs

Key = abhishek

User Name = Indian

Password = bharat

Line Console Configuration on Router:

-------------------------------------

Router(config)#aaa new-model

Router(config)#tacacs-server host 192.168.10.2 key abhishek

Router(config)#aaa authentication login pathak group tacacs+

Router(config)#line console 0

Router(config-line)#login authentication pathak

Router(config-line)#exit

Router#copy running-config startup-config

Destination filename [startup-config]?

Building configuration...

[OK]

Router#

Username: Indian

Password:

Router>

Telnet Configuration on Router:

-------------------------------

Router(config)#aaa authentication login telnet group tacacs+

Router(config)#line vty  0 4

Router(config-line)#login authentication telnet

Router(config-line)#

Access the Router via Client:

-----------------------------

Packet Tracer PC Command Line 1.0

C:\>telnet 192.168.10.1

Trying 192.168.10.1 ...Open

User Access Verification

Username: Indian

Password:

Router>

Switch Configuration:

---------------------

Switch(config)#hostname SW-1

SW-1(config)#ip default-gateway 192.168.10.1

SW-1(config)#interface vlan 1

SW-1(config-if)#ip address 192.168.10.5 255.255.255.0

SW-1(config-if)#no shutdown

SW-1(config-if)#exit

SW-1(config)#

Network Configuration & User Setup on Server:

---------------------------------------------

Client Name = SW-1

Client IP = 192.168.10.5

Server Type = Tacacs

Key = narayan

User Name = Indian

Password = bharat

Switch Configuration:

---------------------

SW-1(config)#aaa new-model

SW-1(config)#tacacs-server host 192.168.10.2 key narayan

SW-1(config)#aaa authentication login swtelnet group tacacs+

SW-1(config)#line vty 0 4

SW-1(config-line)#login authentication swtelnet

SW-1(config-line)#exit

SW-1(config)#enable secret arjun

SW-1(config)#exit

SW-1#

Note: - "You can access the switch via telnet same as router access by client machine through telnet."
