BGP_Configuration



Download link for Practical of BGP_Configuration via Static:

https://mega.nz/file/kWAAhYpI#xiYCqHsqrqYudc0I_MV0SBlLrVJ8ZnuPRGxLyBkqlZI

IP Configuration on R-1:

---------------------------

Router>enable

Router#conf terminal

Router(config)#hostname R-1

R-1(config)#interface serial 1/0

R-1(config-if)#ip address 172.16.0.1 255.0.0.0

R-1(config-if)#clock rate 72000

R-1(config-if)#no shu

R-1(config-if)#exit

R-1(config)#interface fastEthernet 0/0

R-1(config-if)#ip address 10.0.0.1 255.0.0.0

R-1(config-if)#no shu

R-1(config-if)#exit

IP Configuration on R-2:

-------------------------

Router>enable

Router#conf terminal

Router(config)#hostname R-2

R-2(config)#interface serial 1/0

R-2(config-if)#ip address 172.0.0.2 255.0.0.0

R-2(config-if)#no shu

R-2(config-if)#exit

R-2(config)#interface serial 1/1

R-2(config-if)#ip address 172.14.0.1 255.0.0.0

R-2(config-if)#no shu

R-2(config-if)#exit

IP Configuration on R-3:

-------------------------

Router>enable

Router#conf terminal

Router(config)#hostname R-3

R-3(config)#interface serial 1/0

R-3(config-if)#ip address 172.14.0.2 255.0.0.0

R-3(config-if)#no shu

R-3(config-if)#exit

R-3(config)#interface fastEthernet 0/0

R-3(config-if)#ip address 40.0.0.1 255.0.0.0

R-3(config-if)#no shu

R-3(config-if)#exit

BGP Configuration on R-1:

-------------------------

R-1(config)#router bgp 1

R-1(config-router)#neighbor 172.16.0.2 remote-as 71

R-1(config-router)#network 10.0.0.0 mask 255.0.0.0

R-1(config-router)#exit

R-1(config)#do write

Building configuration...

[OK]

R-1(config)#

BGP Configuration on R-2:

-------------------------

R-2(config)#router bgp 71

R-2(config-router)#neighbor 172.16.0.1 remote-as 1

R-2(config-router)#neighbor 172.14.0.2 remote-as 79

R-2(config-router)#network 40.0.0.0 mask 255.0.0.0

R-2(config-router)#exit

R-2(config)#do write

Building configuration...

[OK]

R-2(config)#

BGP Configuration on R-3:

-------------------------

R-3(config)#router bgp 79

R-3(config-router)#neighbor 172.14.0.1 remote-as 71

R-3(config-router)#network 40.0.0.0 mask 255.0.0.0

R-3(config-router)#exit

R-3(config)#do write

Building configuration...

[OK]

R-3(config)#

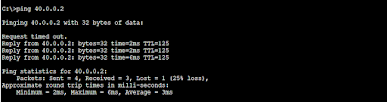

Note:- "Ping the PC-1(10.0.0.2) from PC-2(40.0.0.2)"

Note:- "Ping the PC-2(40.0.0.2) from PC-1(10.0.0.2)"
