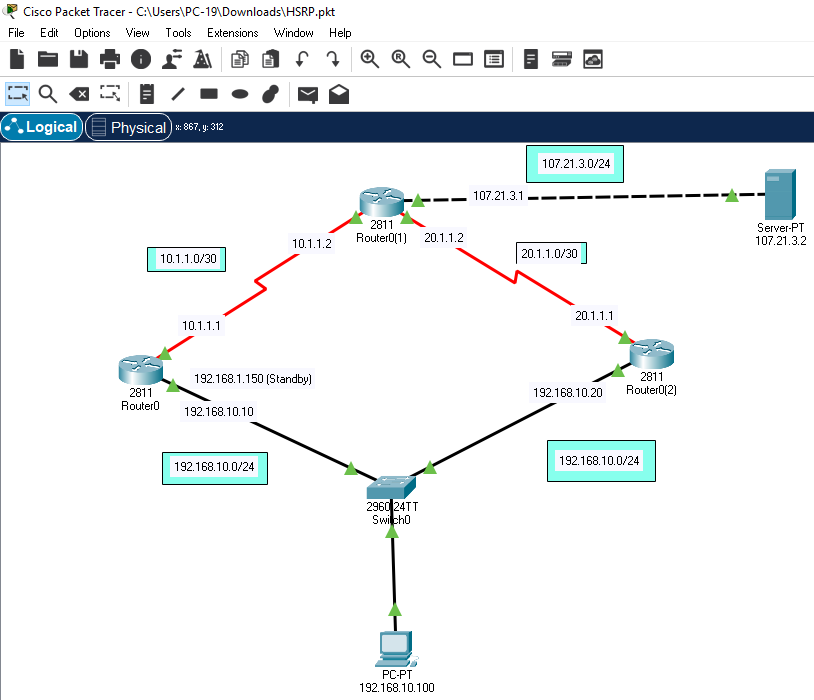

HSRP Configuration


 Download link for Practical of HSRP:)




R-1 Configuration of IP Address:-
---------------------------------
Router>enable
Router#configure terminal
Router(config)#hostname R-1
R-1(config)#int s 1/0
R-1(config-if)#ip add 10.1.1.2 255.255.255.252
R-1(config-if)#no shu
R-1(config)#int s 1/1
R-1(config-if)#ip add 20.1.1.2 255.255.255.252
R-1(config-if)#clock rate 72000
R-1(config-if)#no shu
R-1(config-if)#int f 0/0
R-1(config-if)#ip add 107.21.3.1 255.255.255.0
R-1(config-if)#no shu
R-1(config-if)#ex
R-1(config)#

RIP Version 2 Configuration on R-1:-
------------------------------------
R-1(config)#router rip
R-1(config-router)#version 2
R-1(config-router)#network 10.1.1.0
R-1(config-router)#network 20.1.1.0
R-1(config-router)#network 107.21.3.0

R-2 Configuration of IP Address:-
---------------------------------
Router>en
Router#conf t
Router(config)#hostname R-2
R-2(config)#int s 1/0
R-2(config-if)#ip add 10.1.1.1 255.255.255.252
R-2(config-if)#clock rate 72000
R-2(config-if)#no sh
R-2(config-if)#int  f 0/0
R-2(config-if)#ip add 192.168.10.10 255.255.255.0
R-2(config-if)#no shu
R-2(config-if)#ex

RIP Version 2 Configuration on R-2:-
------------------------------------
R-2(config)#router rip
R-2(config-router)#version 2
R-2(config-router)#network 192.168.10.0
R-2(config-router)#network 10.1.1.0
R-2(config-router)#


R-3 Configuration of IP Address:-
---------------------------------
Router>en
Router#conf t
Router(config)#hostname R-3
R-3(config)#interface fastEthernet 0/0
R-3(config-if)#ip address 192.168.10.20 255.255.255.0
R-3(config-if)#no shu
R-3(config-if)#interface s 1/0
R-3(config-if)#ip address 20.1.1.1 255.255.255.252
R-3(config-if)#no sh
R-3(config-if)#ex

RIP Version 2 Configuration on R-3:-
------------------------------------
R-3(config)#router rip
R-3(config-router)#version 2
R-3(config-router)#network 20.1.1.0
R-3(config-router)#network 192.168.10.0
R-3(config-router)#

HSRP Configuration on R-2:-
---------------------------
R-2(config)#interface fastEthernet 0/0
R-2(config-if)#standby 1 ip 192.168.1.150
R-2(config-if)#standby 1 preempt


HSRP Configuration on R-3:-
---------------------------
R-3(config)#interface fastEthernet 0/0
R-3(config-if)#standby 1 ip 192.168.1.150
R-3(config-if)#standby 1 priority 95
R-3(config-if)#standby 1 preempt
R-3(config-if)#
